870 Walk Around

Introducing the White Pointer 870 Walk Around Hard Top, a vessel that redefines adventure on the water. Crafted with precision and innovation, this boat is designed for those who demand the maximum in every pursuit.

With its sleek and stylish exterior, the 870WA boasts a modern, minimalist aesthetic. The walk-around deck provides easy access to every corner of the boat, making it ideal for any sort of fishing you can throw at it. The spacious and comfortable cabin provides a welcome shelter from the elements, ensuring you can stay out on the water longer and fish harder, no matter the weather.

OVERALL LENGTH

8.7m

TOWING WEIGHT

3500-5000kg

BEAM

2.75m

HULL THICKNESS

6 or 8mm

FUEL TANK

300 - 500L

MAX HP OUTBOARD

500HP

*Tow weight & Fuel tank Subject to final build spec

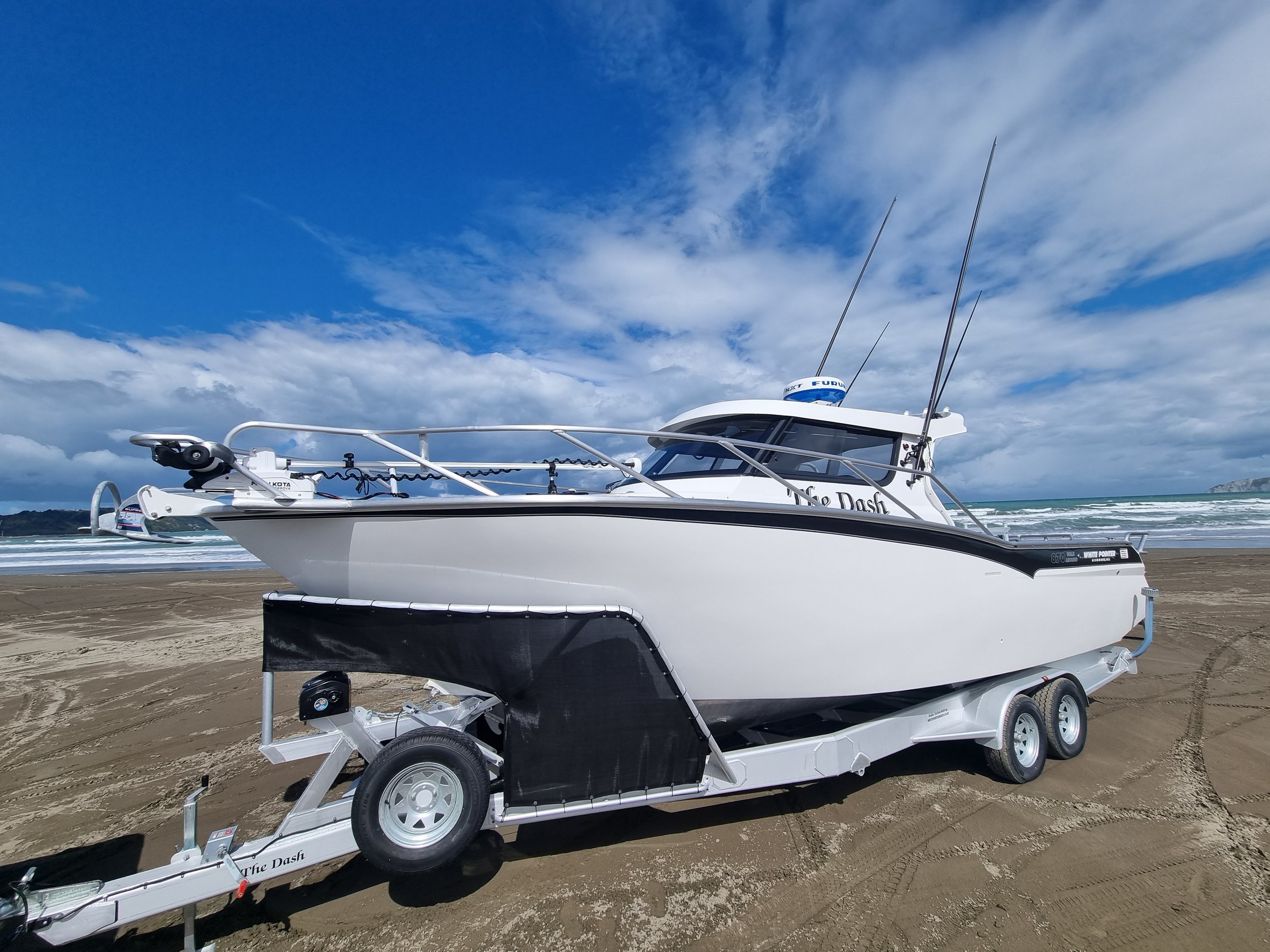

A white motorboat on a trailer parked on a sandy beach with the ocean and a cloudy blue sky in the background.
A white boat on a sandy beach with a blue sky and clouds, ocean waves, and distant hills in the background.
Interior of a boat with two black captain seats and two bench seats, overlooking a beach with trees and mountains in the background.

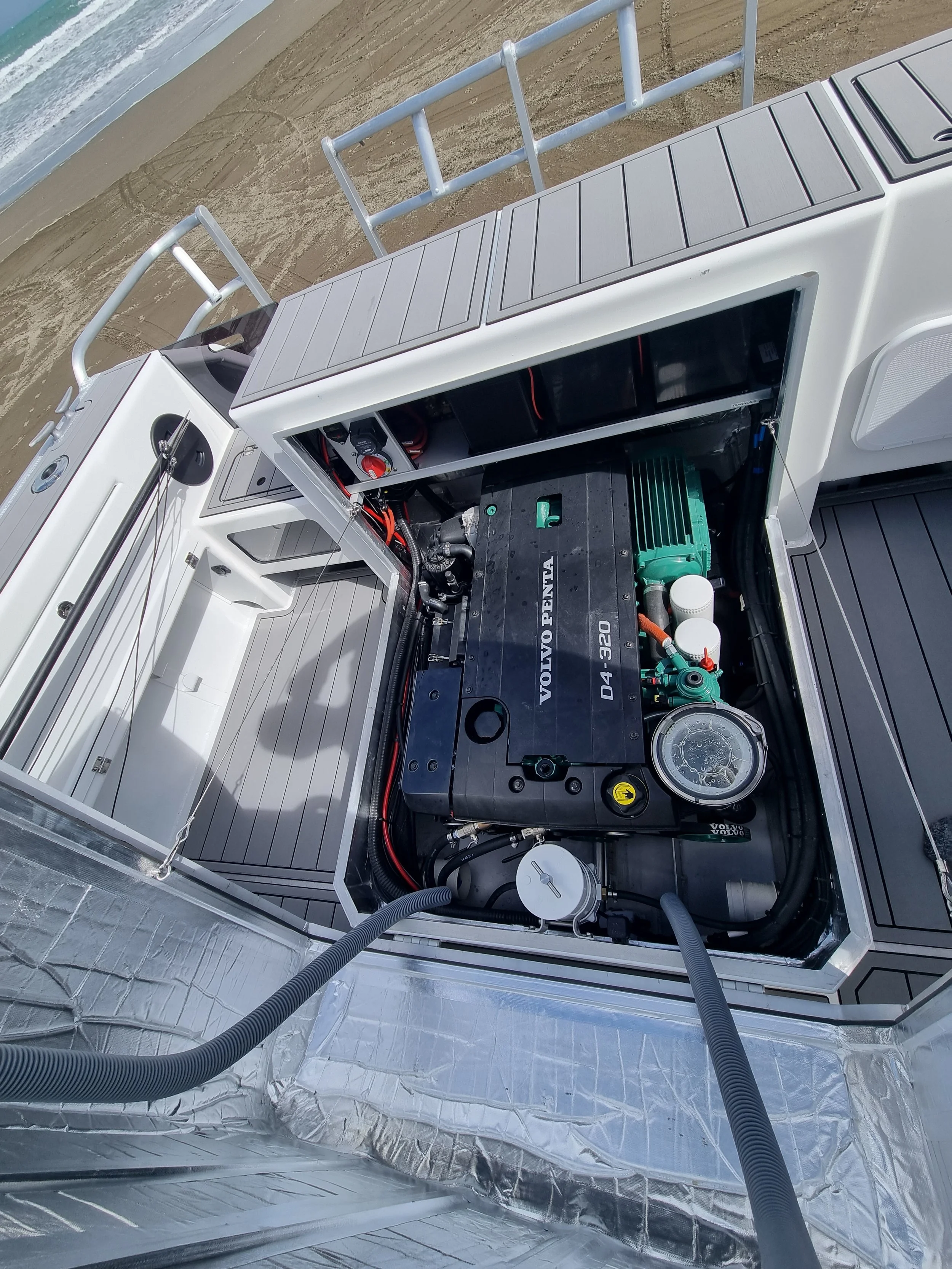

View of a boat's engine compartment with a Volvo Penta D4-320 engine on a beach.
White motorboat on sandy beach with ocean and distant cliffs in background

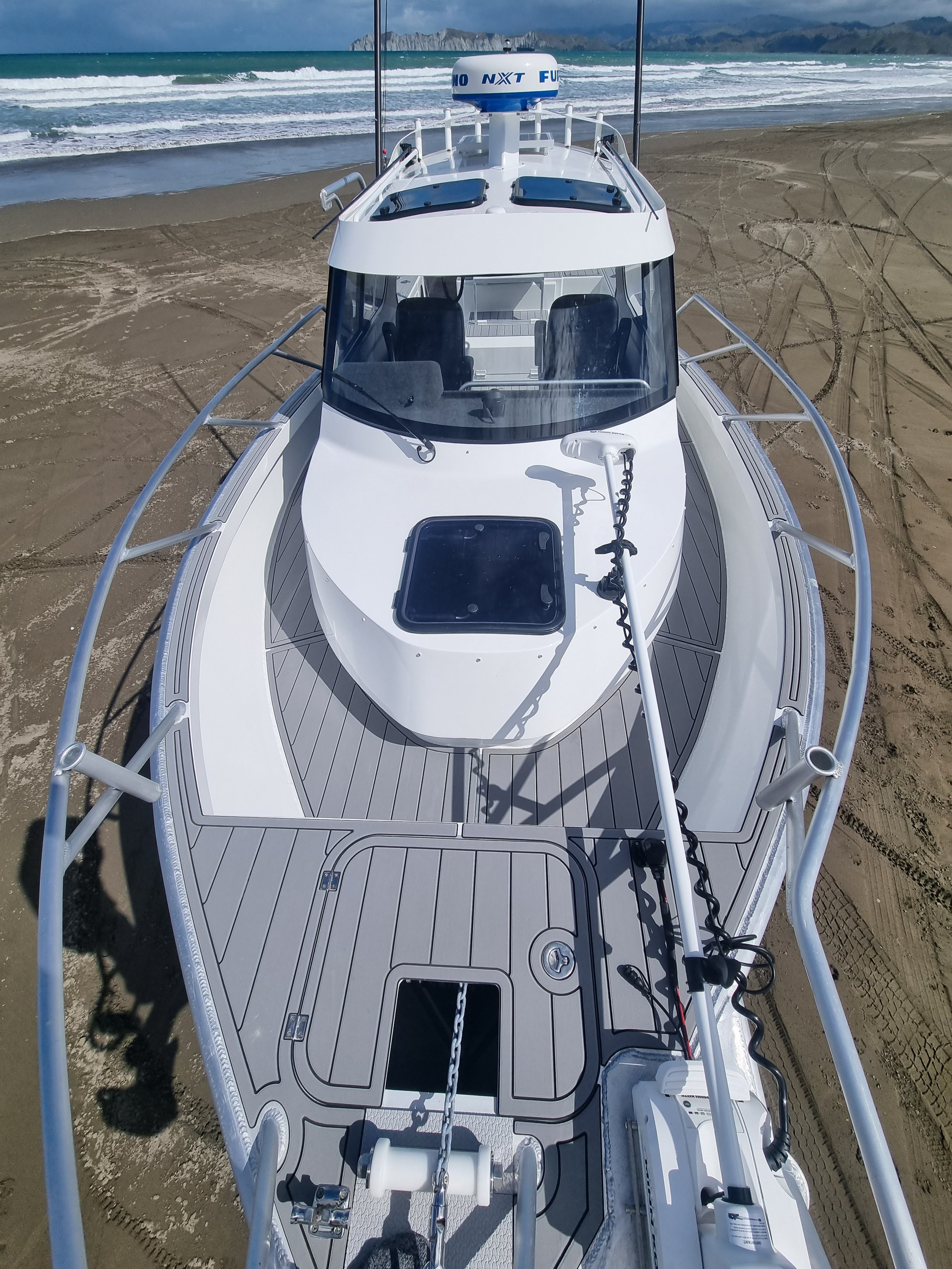

Front view of a white yacht on a sandy beach with the ocean, waves, cloudy sky, and a mountain range in the background.

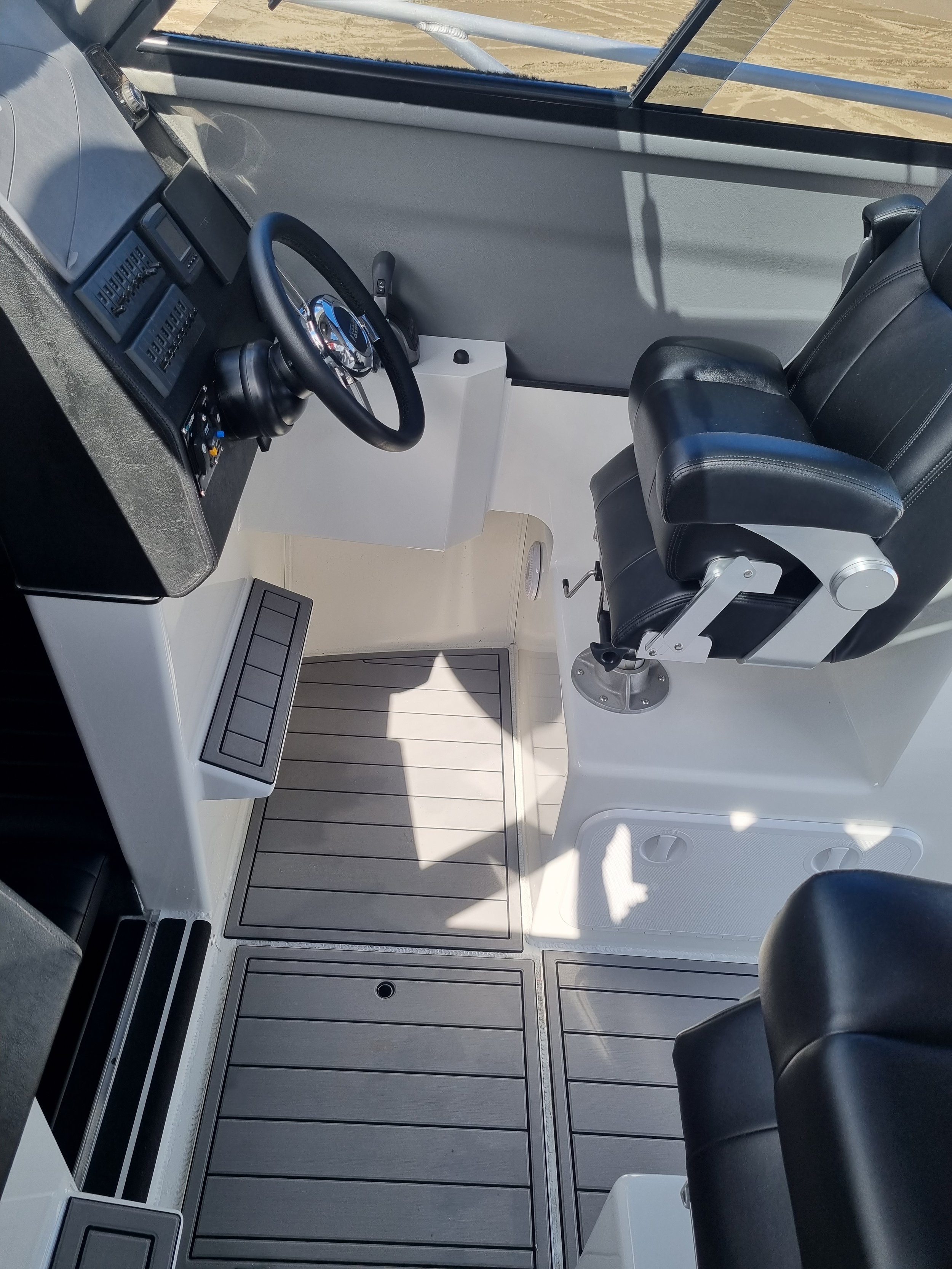

Interior of a boat cockpit with a black leather captain's seat, a steering wheel, and additional seating, with a view of water and sandy shore outside.
The image shows black leather cushioned seats in the back of a vehicle, with grey carpeting on the sides.

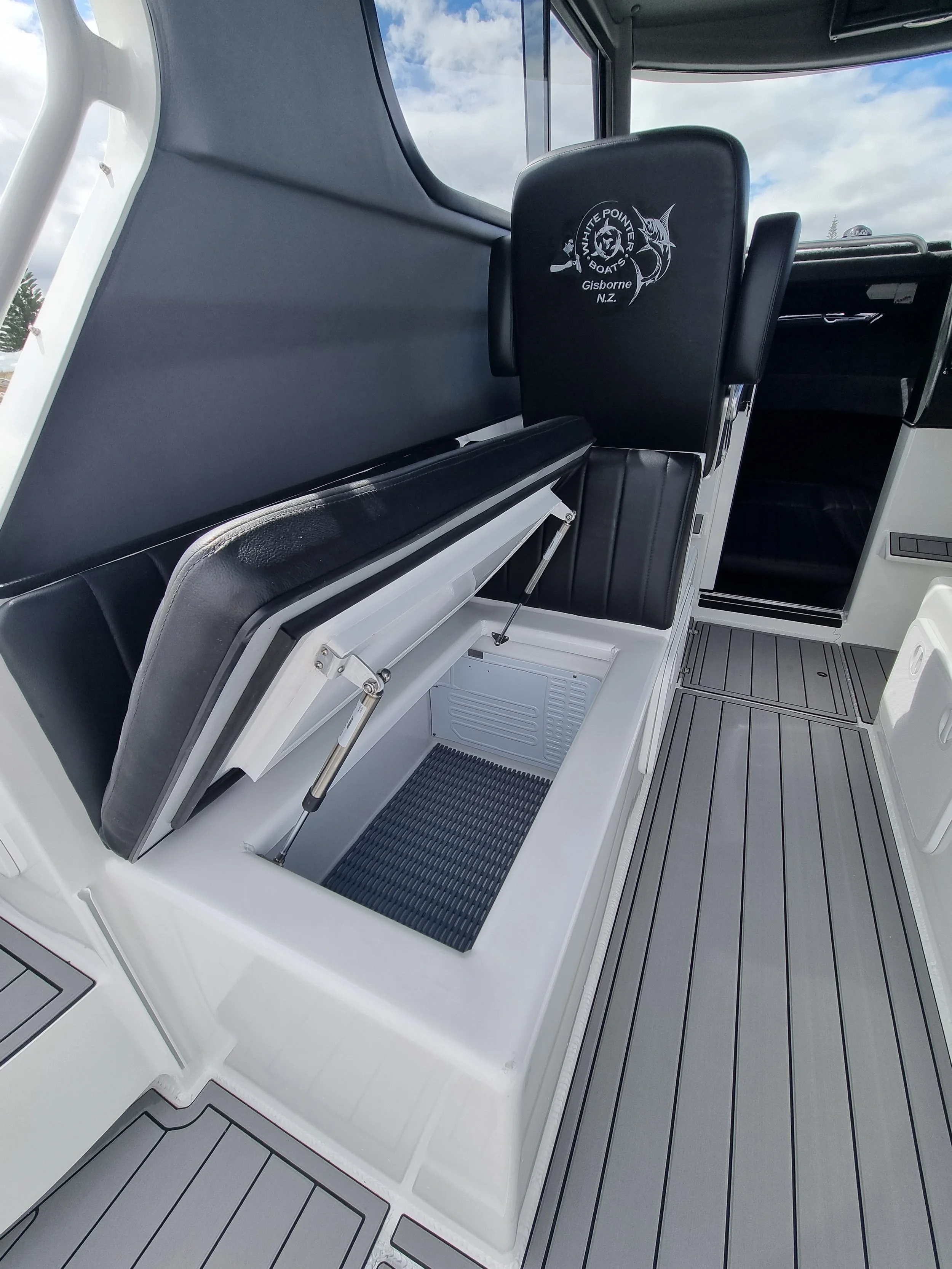

Interior of a boat with a black captain's chair and an open hatch revealing a storage compartment.

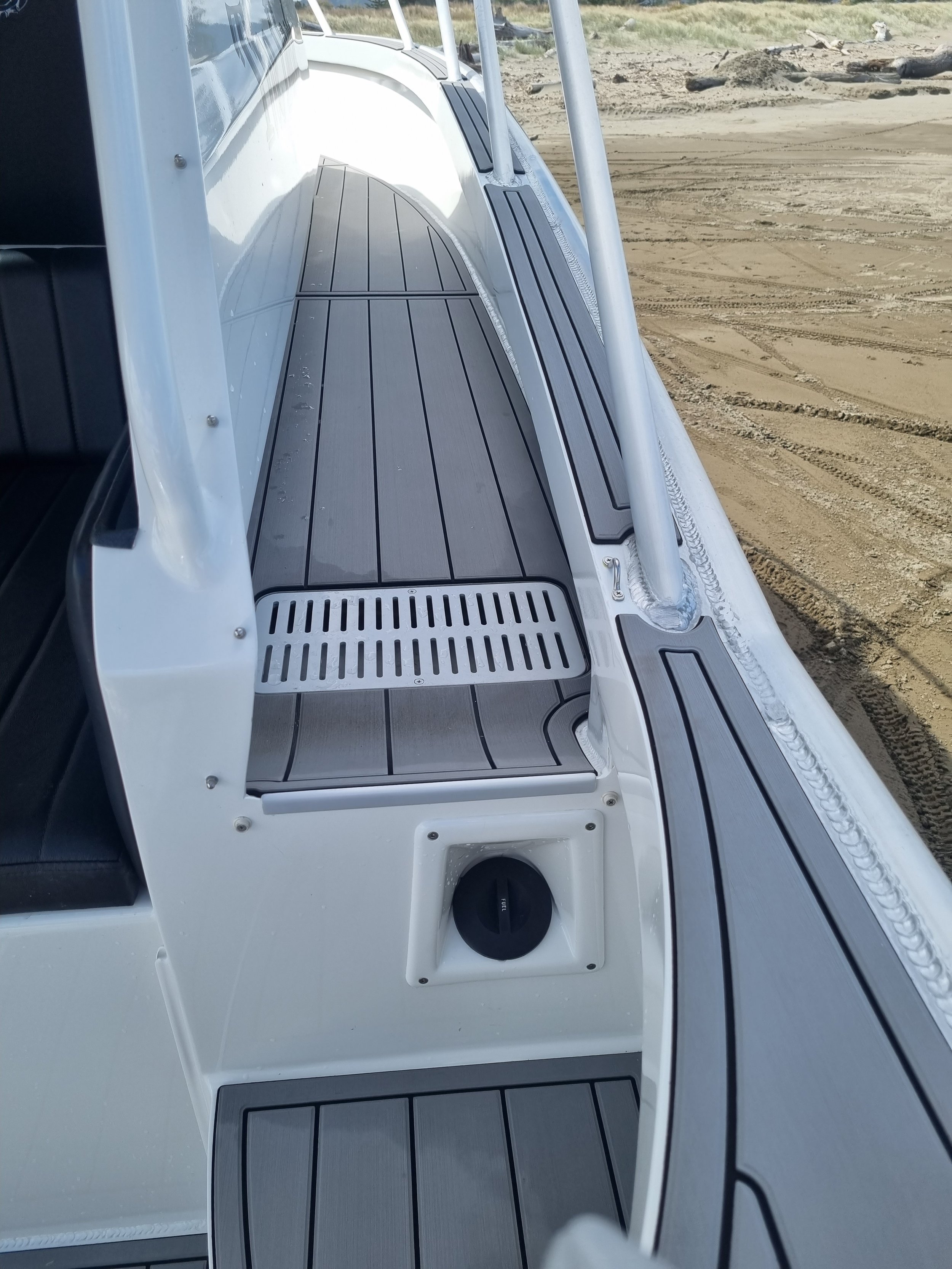

View of a boat deck with various compartments, a small ladder, and a tiled platform with a cover, all in grey and metallic colors.

Standard Features Build Spec 870SC WALK-AROUND

🛥️ Boat

  • Fully welded checker plate decking – pressure tested and easy to clean (Standard)

  • Reverse chined (gull wing) non-pounding hull design – fully framed and plated, commercially proven concept (Standard)

  • 360 Degree Walk-around

⚙️ Engine

  • Mercury Verado V10 XXL 400HP 30-inch shaft

    • Digital throttle shift

    • VesselView 502 gauge

    • Electric steering

    • Stainless steel propeller (Standard)

📡 Electronics

  • Simrad NSS16 EVO3S 16" MFD flush dash mounted

  • VSSLNK single kit with full NMEA 2000 network (Standard)

  • Simrad XSONIC TM 275LH-W CHIRP transducer, transom mounted (Standard)

  • VHF GME Radio in overhead console with screw-in aerial whip (Standard)

  • Fusion MS RA770 Apollo Stereo with 4x 4” speakers and aerial (Standard)

⚓ Bow

  • Large anchor well with drains (Standard)

  • “T” shape bow bollard (Standard)

  • Bow sprit with rope guide and roller (Standard)

  • Flat foredeck platform (Standard)

  • Full bow railing (Standard)

  • Bow floodlight bar under bow rail (Standard)

  • Tow eye (Standard)

  • Stressfree NG Maxi Freefall 1400w winch with 110m 8mm braid + 15m chain (Standard)

🛌 Cuddy Cabin

  • Dash removable rear cover for wiring access (Standard)

  • Watertight cuddy roof hatch (Standard)

  • LED cuddy lighting (Standard)

  • V-berth in-fill squab (Standard)

  • 2x upper & lower storage shelves (Standard)

  • Under-squab storage (Standard)

  • Electric flush toilet in vee berth with seacock and privacy curtain (Standard)

  • Marine carpet lined walls and ceiling (Standard)

  • Vee berth squabs (Standard)

🚤 Wheelhouse

  • Driver position for sitting or standing (Standard)

  • Compass with nav lighting (Standard)

  • Custom bolstered front seats (Standard)

  • Rear box seating with big day loungers & big storage under squabs (Standard)

  • 12V USB sockets x2 (Standard)

  • Full-width dash top with flush-mount electronics capability (Standard)

  • Throttle housing for top mount (Standard)

  • Grab rails on roof, fishtail ends & overhang (Standard)

  • Polystyrene insulated ceiling under carpet (Standard)

  • LED anchor mast light (Standard)

  • LED nav lights (Standard)

  • Triple LED red/white interior lights (Standard)

  • Dash-mounted radio console with dual handrails (Standard)

  • Rocket launcher (6 rods) (Standard)

  • Sliding side windows (Standard)

  • Under-deck storage with hinged lid (Standard)

  • Marine vinyl dash/console upholstery (Standard)

  • Marine carpet lined wheelhouse (Standard)

  • Dual pantograph windscreen wipers + washer (Standard)

  • One-piece 6mm curved glass front window (Standard)

  • Dual 6-switch wiring panel with fuse access (Standard)

🧼 Cockpit

  • Battery storage with 2x large hatches (Standard)

  • Built-in buoyancy (Standard)

  • Saltwater deck wash system (Standard)

  • Fresh water system: 85L tank, hose, pump, filter, tap (Standard)

  • 400L in-floor fuel tank (Standard)

  • LED deck spotlights (Standard)

  • 6x stainless steel rod holders (Standard)

  • Storage/kill tank with hinged lid & plastic liner (Standard)

  • Paddle & gaff storage (Standard)

  • Large side shelves (Standard)

  • Auto bilge pump with 3-way switch (Standard)

  • In-deck sump with drainage (Standard)

  • Sump scuppers for self-draining (Standard)

🔚 Transom

  • 750mm removable bait station with 4 rod holders, knife and drink holders (Standard)

  • 2-step flat folding boarding ladder (Standard)

  • Full-width bat wing boarding platform (Standard)

  • Mid-transom alloy cleat bollards (Standard)

  • Grab rails on Portofino transom (Standard)

  • Live bait tank with top hatch access (Standard)

  • Modern fast-back transom profile (Standard)

  • 30-inch outboard pod (Standard)

  • Transducer mounting plate (Standard)

  • Trim tab mounting plates (Standard)

  • Twin battery system with house/start isolation, parallel switch (Standard)

  • Walk-through transom with starboard slider (Standard)

🎨 Coatings

  • Painted hood, wheelhouse, hull sides, and transom

  • Acid-washed and Nyalic-coated interior & structural areas (Standard)

  • Decal graphics and striping (Standard)

🚛 Trailer

  • 870 Custom Alloy twin axle trailer. (COF DEPENDING ON SET UP)

    • Cradle design with centre rollers

    • Submersible LED lights

    • High-lift jockey wheel

    • Nylic coated (Standard)

  • Credo electronic brake system with stainless discs and calipers (Standard)

  • Snub catch system (Standard)

  • Spare wheel with trailer mount (Standard)

  • Tie-down straps with flag bag and light (Standard)

  • ADR compliant, Australian-spec dual axle with marker lights (Popular Extra)

Personal Extras:
The extras that can be added to the Sports Cruiser simple or as lavish as you want. We are flexible to be able to work with clients to accommodate most special requests. Its just a matter of asking to ensure that you get what you want in your boat and not adjusting to a standard production fit out.

NOTE - Paint/Upholstery/Flooring are all upgrades that may be present in photos how ever not included in spec. (Enquire for additional information)

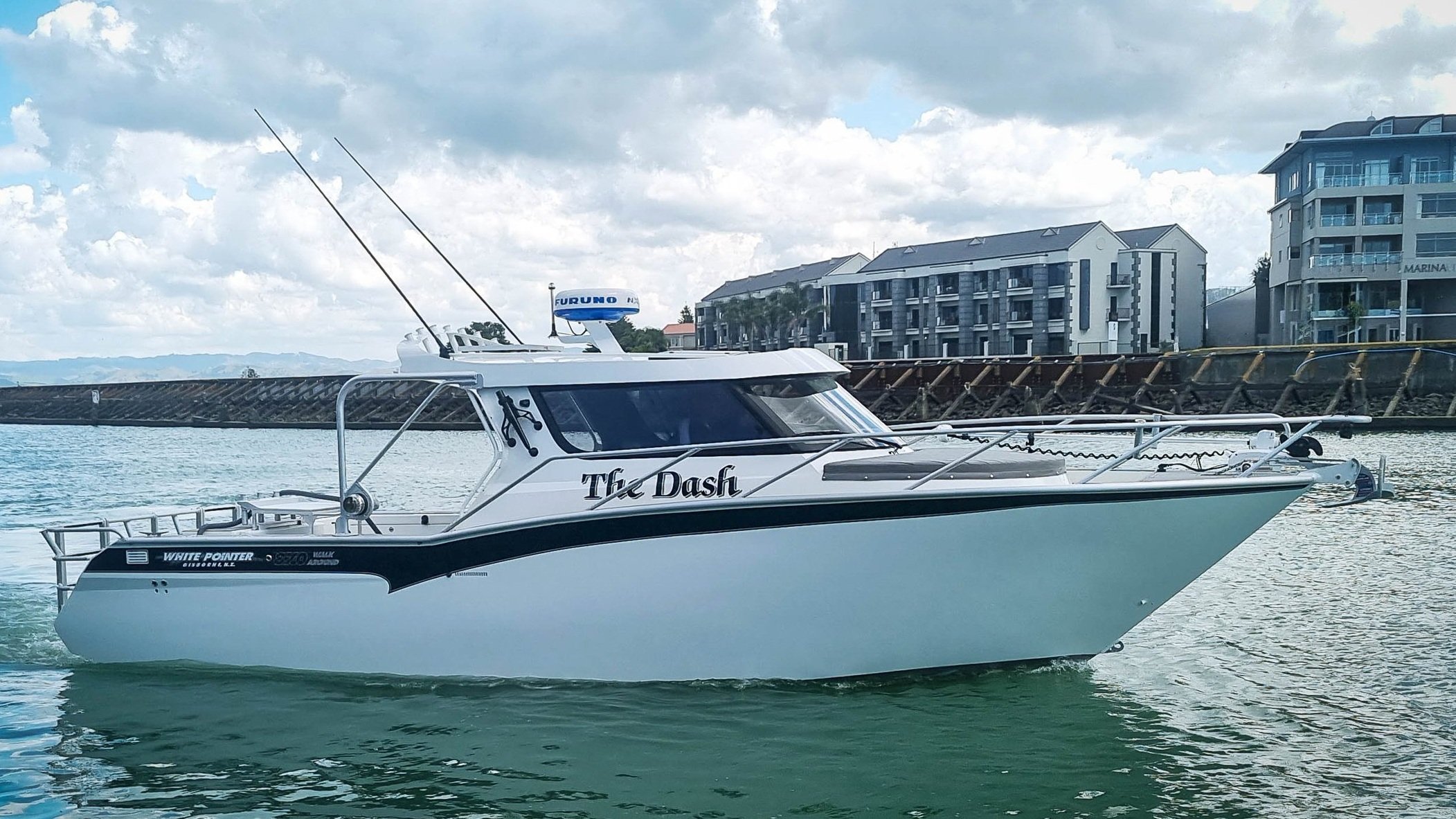

20220218_133129 copy.jpg

870 WALK AROUND HT REVIEW

Enjoy this review by Pacific Powerboat Magazine on our 870 Walkaround

Additional Information

Fitting of Engine to include:
Nav Lights, Bilge Pump, Master Switch, Fuel Filter, Fuel Lines, Installation of Gauges & Controls, Pre-delivery check & Sea Trials

Fitting of Stern Drives to include:
Engine Beds, engine well, hinged seal and commercially rated lockable engine box, insulated transom plate, battery shelf, sound proofing, engine air venting engine and leg secured down

Engine Power Options:
Inboard or Outboards

Coatings Options:
Customised graphics package, Nyalic clear coats, Solid and Metallic colours

Electronics options:
Furuno, Garmin, Simrad, Raymarine

Trailer option:
Custom White Pointer aluminium trailer
