870 Pro Sportsman

The White Pointer 870 Pro Sportsman is a top-tier Bluewater vessel designed for serious anglers and adventurers. Built to withstand whatever the ocean may throw at it.

With its true to size 8.7-meter length, advanced hull design, and top-notch fishing features, it promises a smooth ride and excellent boating experience. Whether you're chasing large pelagics or cruising coastal waters, this boat delivers unrivaled performance and comfort for all your maritime pursuits.

OVERALL LENGTH

8.7m

TOWING WEIGHT

4500-5500kg+

BEAM

2.75m

HULL THICKNESS

6 or 8mm

FUEL TANK

500 - 800L

MAX HP INBOARD

440hp

*Tow weight & Fuel tank Subject to final build spec

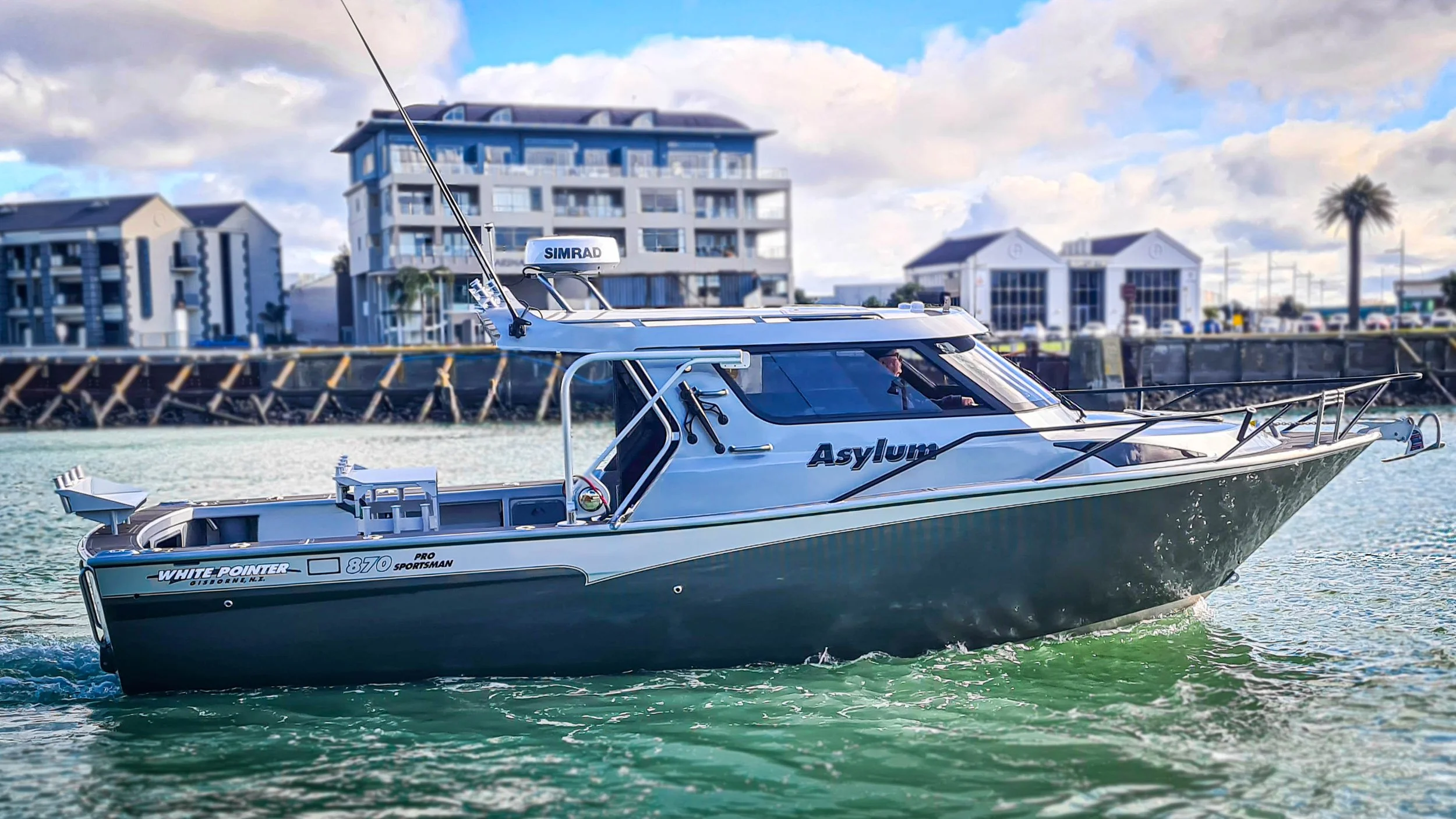

A white motorboat named 'Asylum' cruising in a harbor with buildings and palm trees in the background.

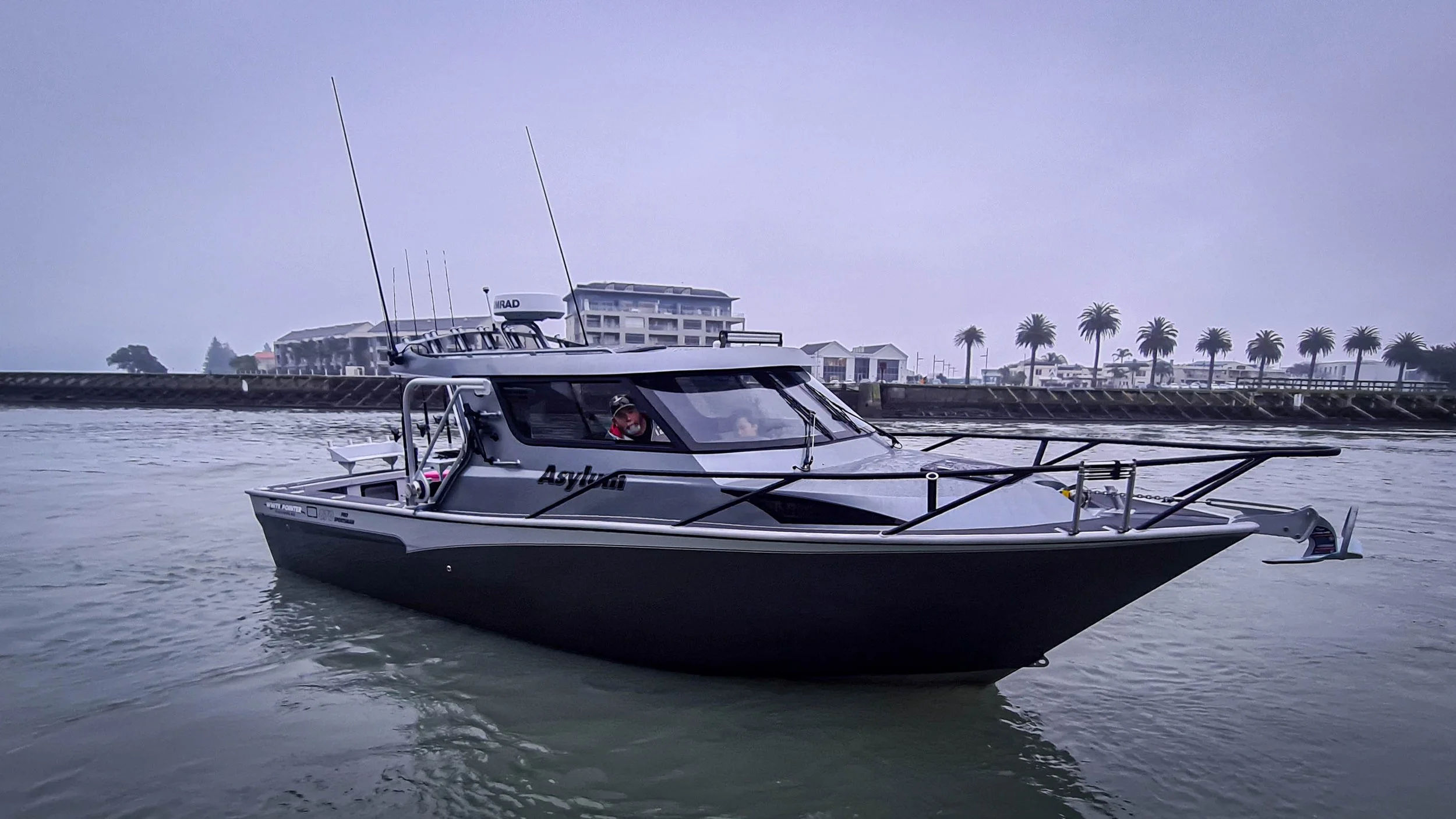

A sleek gray and black motorboat on calm water, with a person inside looking out. The boat has antennas and is near a breakwater with palm trees and buildings in the background, under a cloudy sky.
A white fishing boat moving through the water, creating a splash, with cloudy sky and ocean in the background.

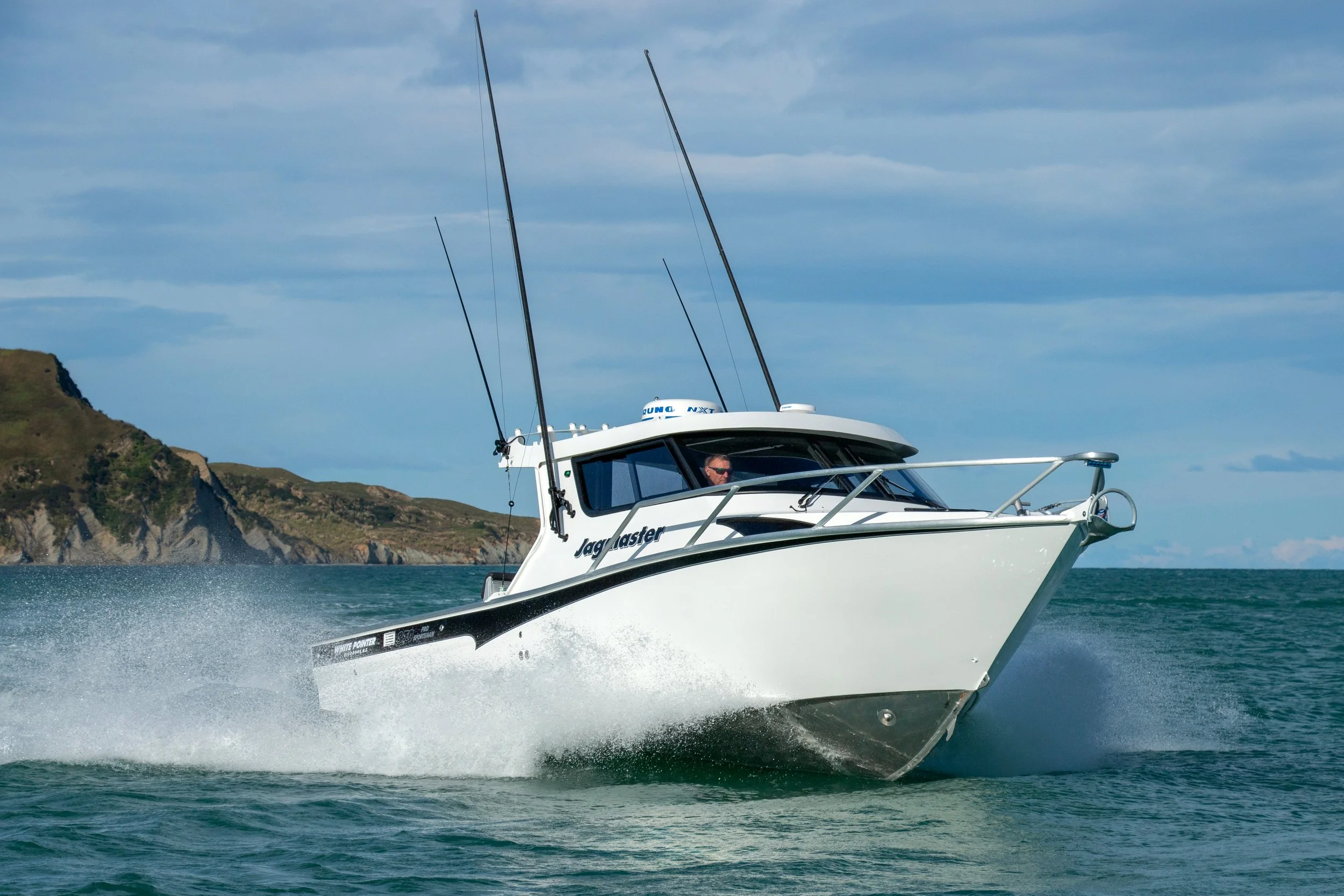

A white motorboat named 'Jagmaster' speeding through the water with a mountainous coastline in the background.
White motorboat on the water with seating, steering, and equipment visible.

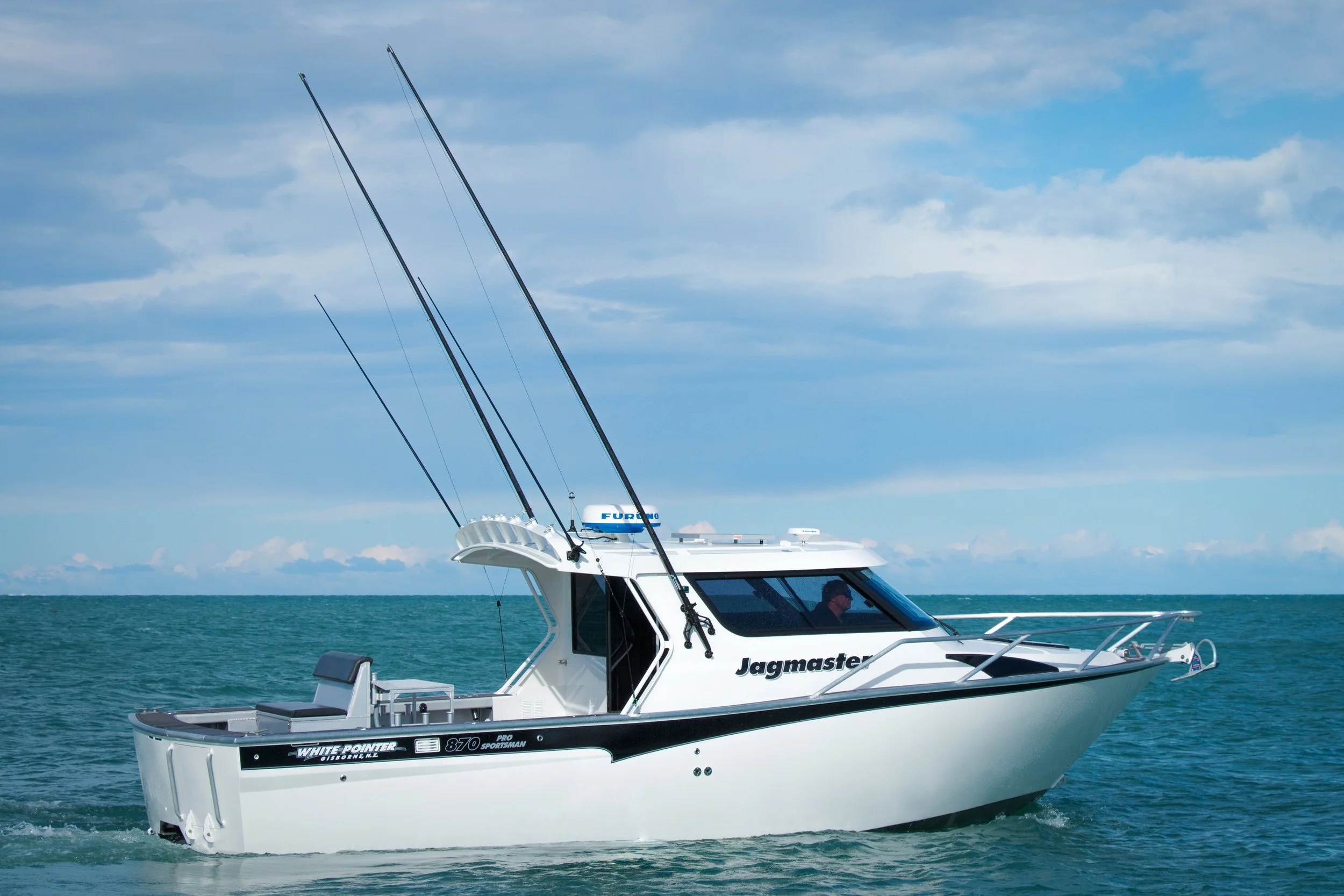

White and black fishing boat named Jagmaster sailing on the ocean with cloudy sky in the background.
A white motorboat speeding on the water, with a rocky coastline and cloudy sky in the background.
Close-up of a boat's interior showing fishing rods, a small wooden cabinet, and part of the deck with water in the background.
A black and white fishing boat with multiple fishing rods mounted at the stern, cruising on a body of water with mountainous landscape in the background.

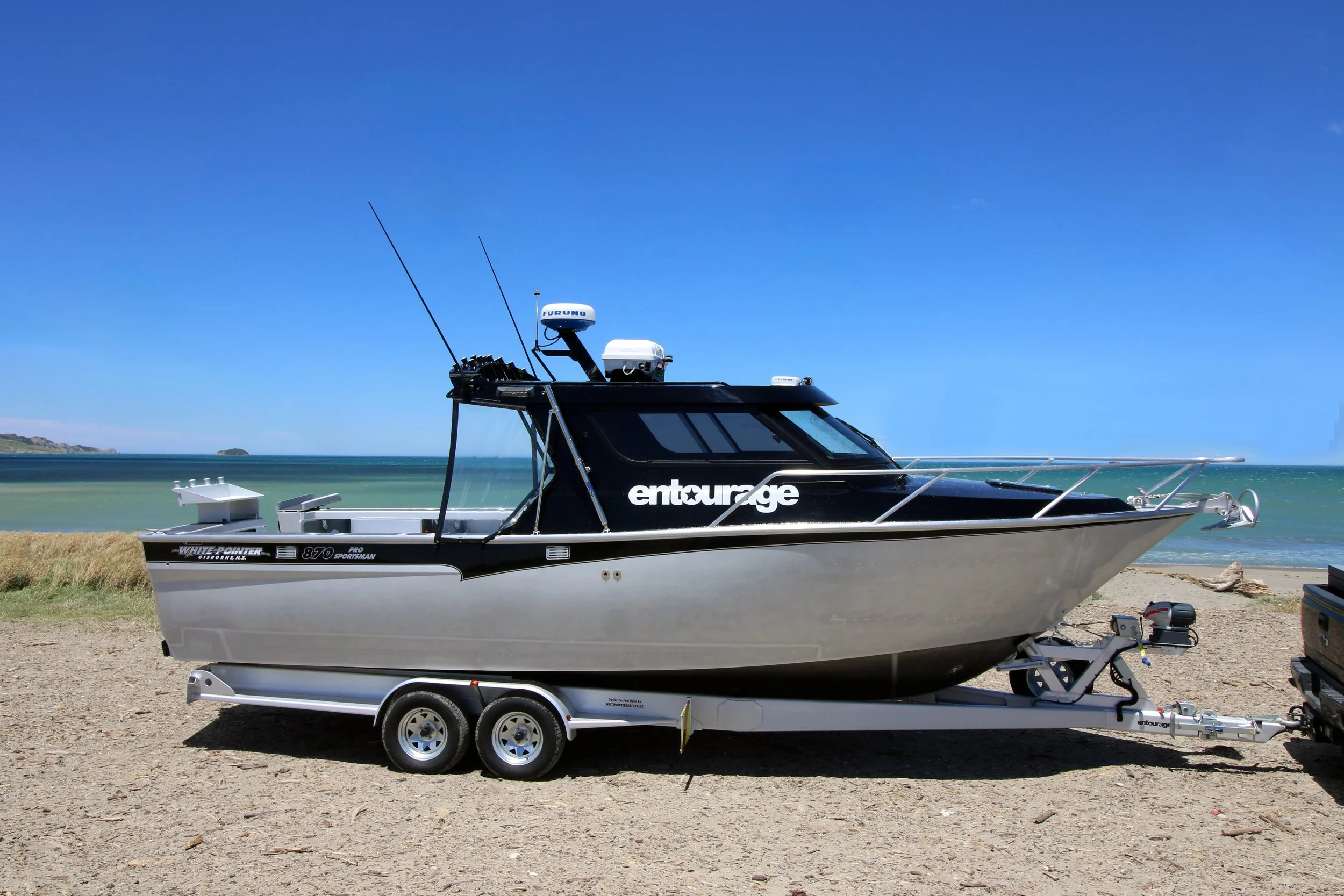

A black and silver boat on a trailer at a beach, with the ocean and blue sky in the background.

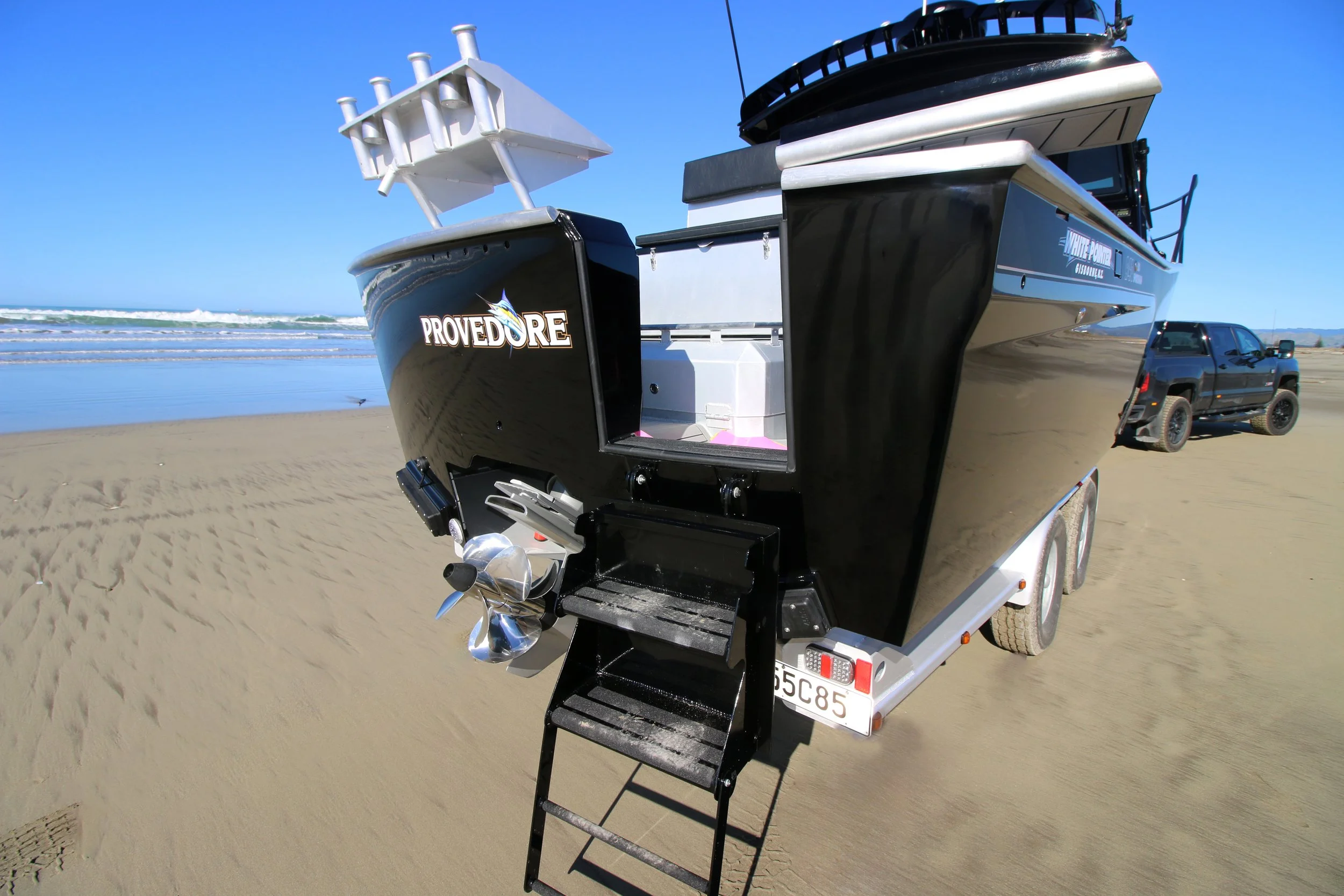

A white motor yacht on a sandy beach with a clear blue sky and ocean in the background, showing the stern and part of the propeller.

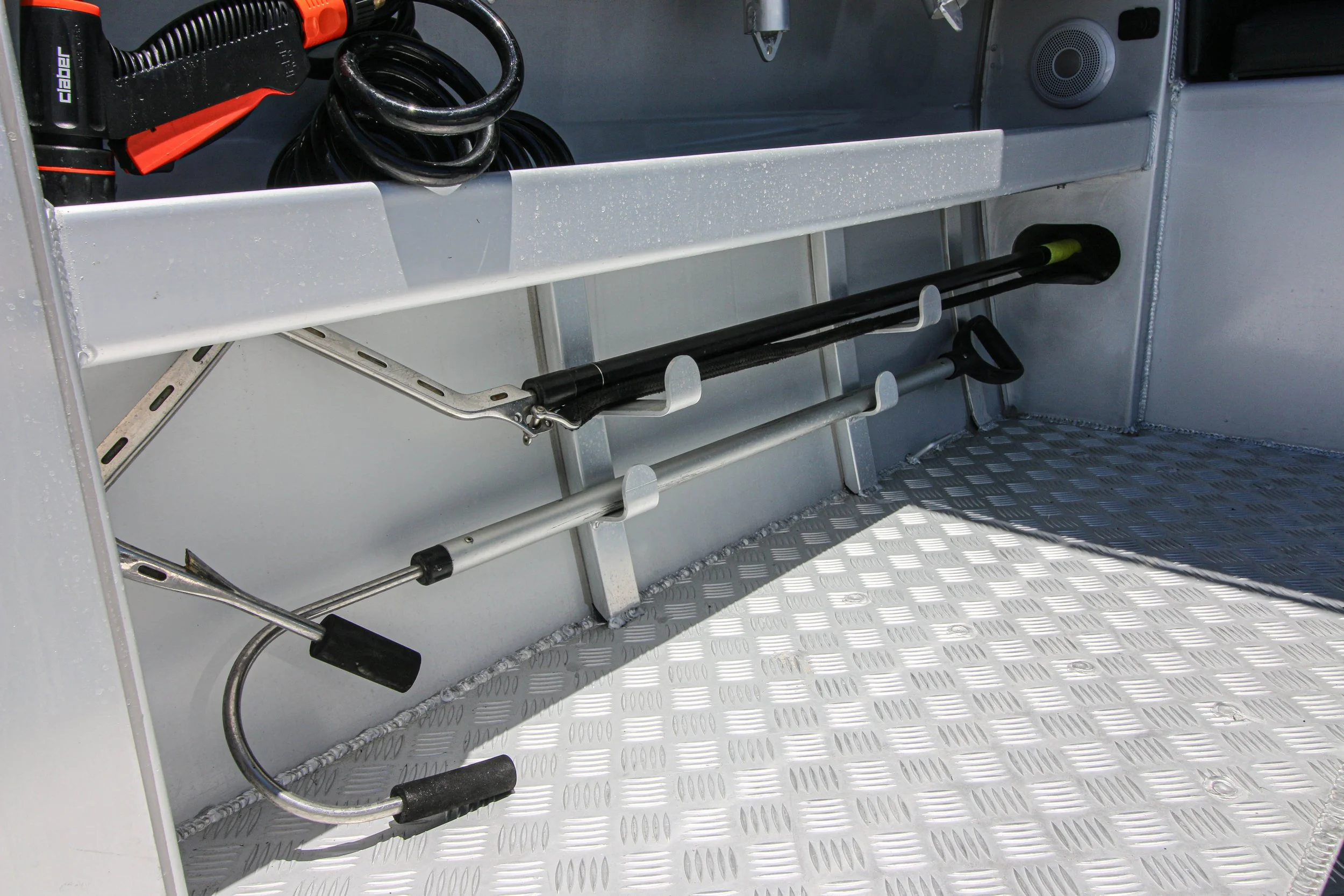

Interior of a utility or service vehicle with tools, including shovels, mounted on a slotted wall.
The interior of a metallic boat with storage compartments and a central hatch, situated on sandy terrain with grassy surroundings.

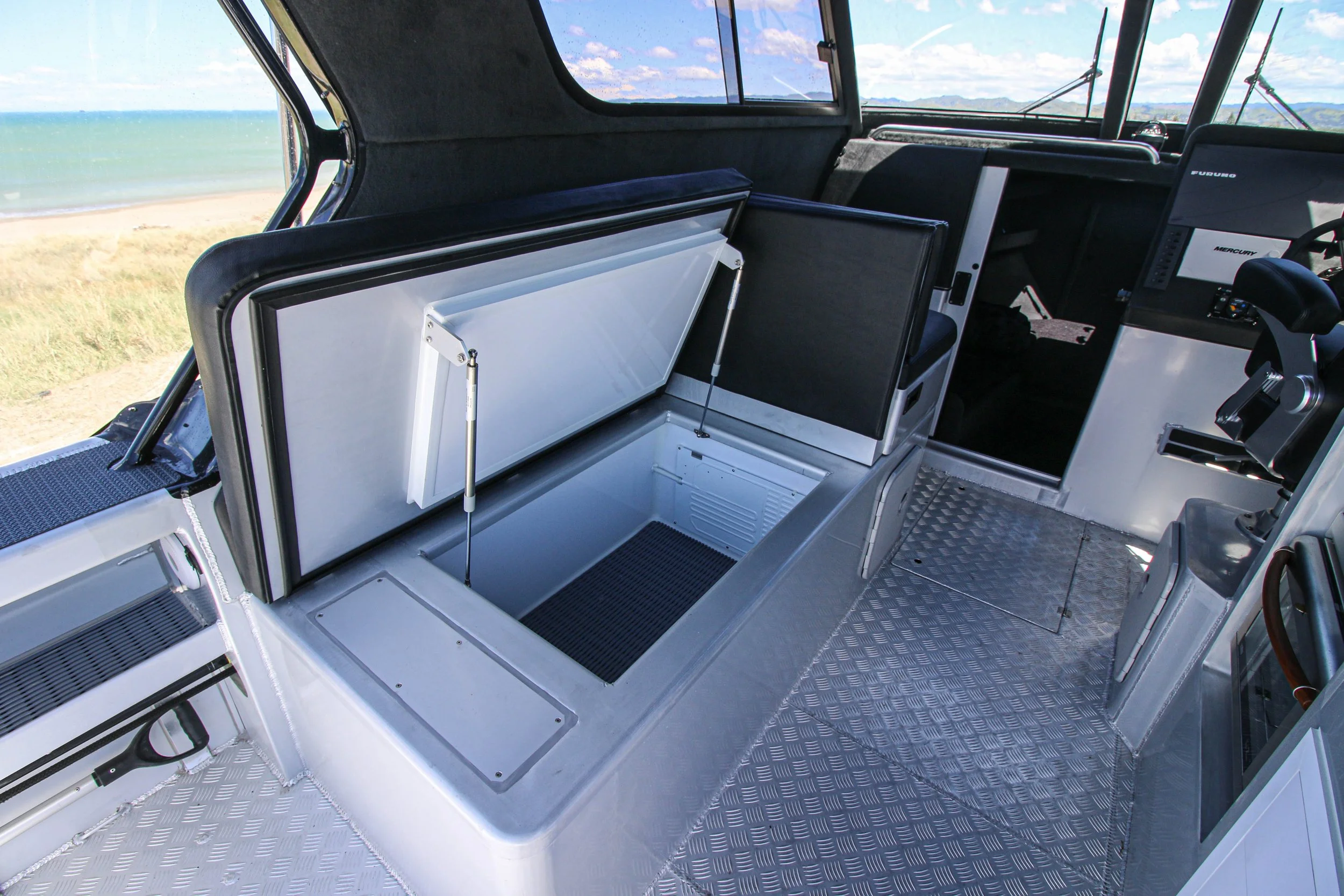

Interior view of a boat cockpit with an open storage compartment, navigation instruments, and a steering wheel, overlooking a beach and sea with mountains in the distance.

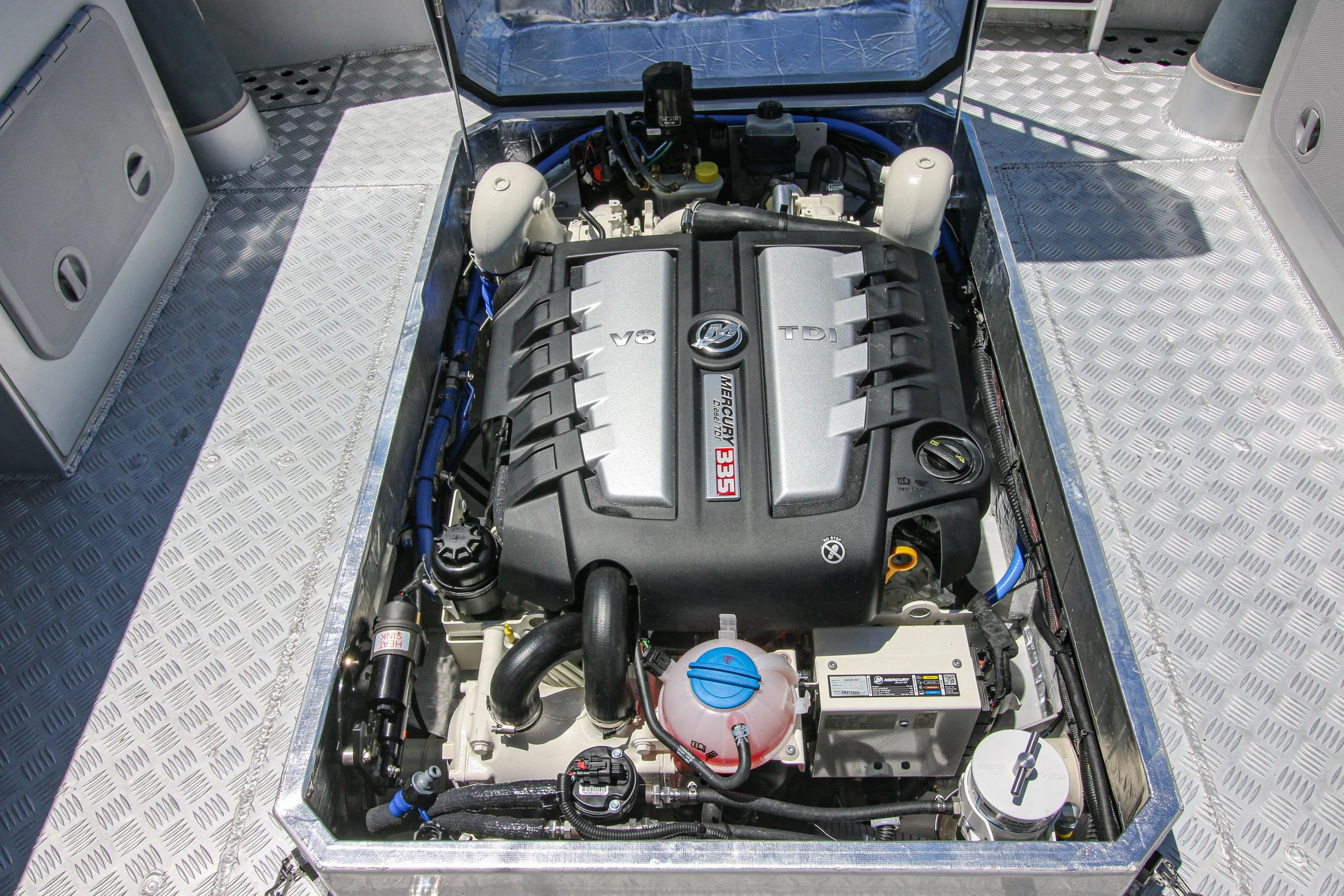

Marine engine with V8 TDI badge, surrounded by metal flooring and boat interior components.
Interior view of a boat's cockpit showing black cushioned seats, a steering wheel, dashboard with controls, and a view through the windows of a landscape with mountains and open field.

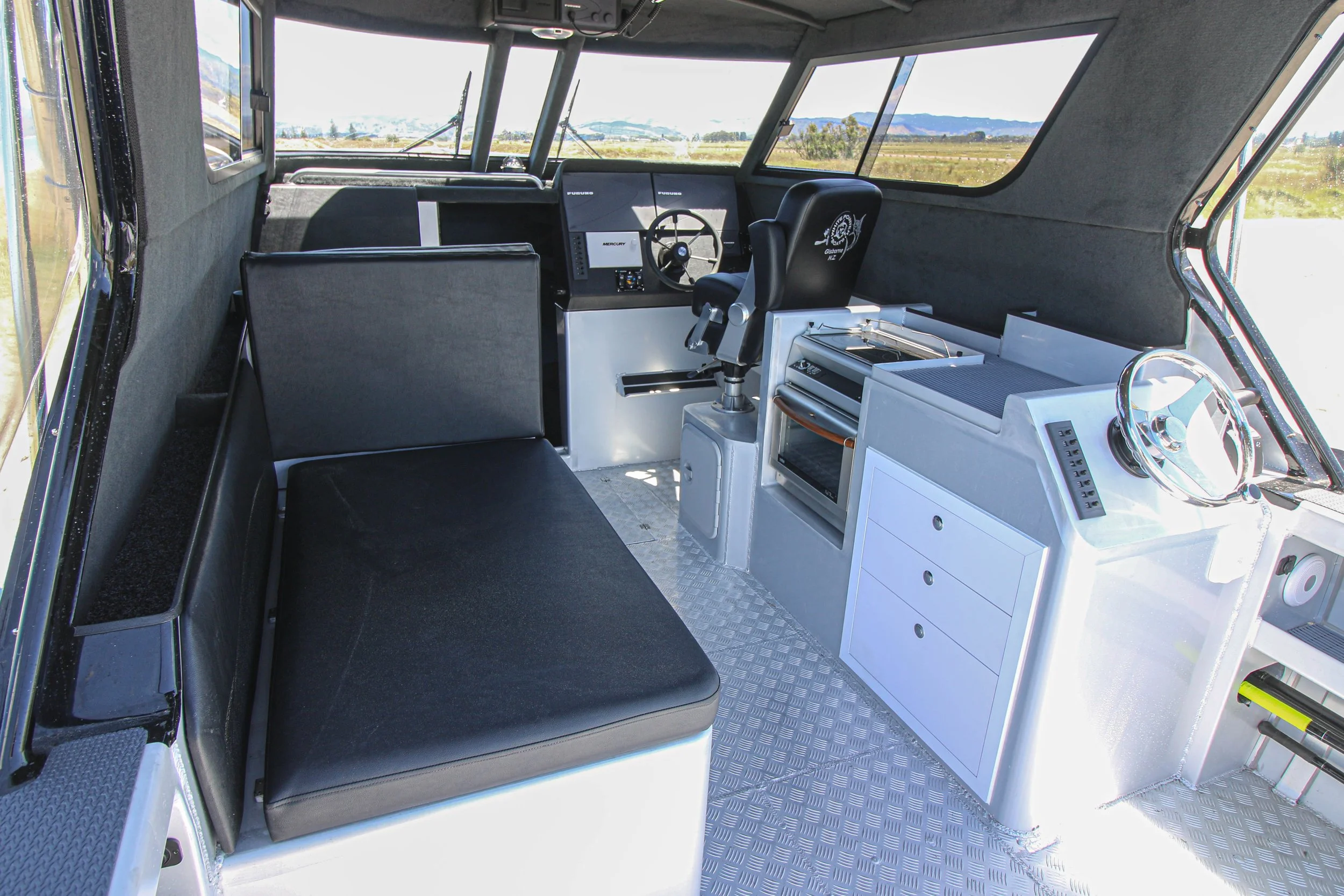

Interior of a boat showing black cushioned seats arranged in an L-shape with a textured metal floor and a window overlooking water and trees.

Standard Features Build Spec 870PS

🛥️ Boat

  • Fully welded checker plate decking – pressure tested and easy to clean (Standard)

  • Reverse chined (gull wing) non-pounding hull design – fully framed and plated, commercially proven concept (Standard)

  • Pro-sportsman curved game chasing transom

⚙️ Engine

  • Volvo D4 320HP inboard.

    • Digital throttle shift

    • Stainless steel propeller (Standard)

    • Custom engine bay, lift up engine box central station

📡 Electronics

  • Simrad NSS16 EVO3S 16" MFD flush dash mounted

  • VSSLNK single kit with full NMEA 2000 network (Standard)

  • Simrad XSONIC TM 275LH-W CHIRP transducer, transom mounted (Standard)

  • VHF GME Radio in overhead console with screw-in aerial whip (Standard)

  • Fusion MS RA770 Apollo Stereo with 4x 4” speakers and aerial (Standard)

⚓ Bow

  • Large anchor well with drains (Standard)

  • “T” shape bow bollard (Standard)

  • Bow sprit with rope guide and roller (Standard)

  • Flat foredeck platform (Standard)

  • Full bow railing (Standard)

  • Bow floodlight bar under bow rail (Standard)

  • Tow eye (Standard)

  • Stressfree NG Maxi Freefall 1400w winch with 110m 8mm braid + 15m chain (Standard)

🛌 Cuddy Cabin

  • Dash removable rear cover for wiring access (Standard)

  • Watertight cuddy roof hatch (Standard)

  • LED cuddy lighting (Standard)

  • V-berth in-fill squab (Standard)

  • 2x upper & lower storage shelves (Standard)

  • Under-squab storage (Standard)

  • Electric flush toilet in vee berth with seacock and privacy curtain (Standard)

  • Marine carpet lined walls and ceiling (Standard)

  • Vee berth squabs (Standard)

  • Shark fin quarter windows (Standard)

🚤 Wheelhouse

  • Driver position for sitting or standing (Standard)

  • Compass with nav lighting (Standard)

  • Custom bolstered front seats with storage base (Standard)

  • Rear box seating with reversible backrest and footrest (Standard)

  • Double rear seat with lift-up squab (Standard)

  • Folding table between port seats (Standard)

  • 12V USB sockets x2 (Standard)

  • Full-width dash top with flush-mount electronics capability (Standard)

  • Throttle housing for top mount (Standard)

  • 45L fridge under rear seat (Standard)

  • Grab rails on roof, fishtail ends & overhang (Standard)

  • Polystyrene insulated ceiling under carpet (Standard)

  • LED anchor mast light (Standard)

  • LED nav lights (Standard)

  • Triple LED red/white interior lights (Standard)

  • Dash-mounted radio console with dual handrails (Standard)

  • Rocket launcher (6 rods) (Standard)

  • Sliding side windows (Standard)

  • Under-deck storage with hinged lid (Standard)

  • Marine vinyl dash/console upholstery (Standard)

  • Marine carpet lined wheelhouse (Standard)

  • Dual pantograph windscreen wipers + washer (Standard)

  • One-piece 6mm curved glass front window (Standard)

  • Dual 6-switch wiring panel with fuse access (Standard)

🧼 Cockpit

  • Battery storage with 2x large hatches (Standard)

  • Built-in buoyancy (Standard)

  • Saltwater deck wash system (Standard)

  • Fresh water system: 85L tank, hose, pump, filter, tap (Standard)

  • 500L in-floor fuel tank (Standard)

  • LED deck spotlights (Standard)

  • 6x stainless steel rod holders (Standard)

  • Storage/kill tank with hinged lid & plastic liner (Standard)

  • Paddle & gaff storage (Standard)

  • Large side shelves (Standard)

  • Auto bilge pump with 3-way switch (Standard)

  • In-deck sump with drainage (Standard)

🔚 Transom

  • Central bait station with 10 rod holders, knife and drink holders (Standard)

  • Transom door, Lift up/fold down with 2 step ladder extra fold down(Standard)

  • Mid-transom alloy cleat bollards (Standard)

  • Grab rails on Portofino transom (Standard)

  • central Live bait tank with top hatch access (Standard)

  • Modern fast-back transom profile (Standard)

  • Transducer mounting plate (Standard)

  • Trim tab mounting plates (Standard)

  • Twin battery system with house/start isolation, parallel switch (Standard)

🎨 Coatings

  • Painted hood, wheelhouse, hull sides, and transom

  • Acid-washed and Nyalic-coated interior & structural areas (Standard)

  • Decal graphics and striping (Standard)

🚛 Trailer

  • 870PS Custom Alloy twin axle trailer (COF)

    • Cradle design with centre rollers

    • Submersible LED lights

    • High-lift jockey wheel

    • Nylic coated (Standard)

  • Credo electronic brake system with stainless discs and calipers (Standard)

  • Snub catch system (Standard)

  • Spare wheel with trailer mount (Standard)

  • Tie-down straps with flag bag and light (Standard)

  • ADR compliant, Australian-spec dual axle with marker lights (Popular Extra)

Personal Extras:
The extras that can be added to the Sports Cruiser simple or as lavish as you want. We are flexible to be able to work with clients to accommodate most special requests. Its just a matter of asking to ensure that you get what you want in your boat and not adjusting to a standard production fit out.

NOTE - Paint/Upholstery/Flooring are all upgrades that may be present in photos how ever not included in spec. (Enquire for additional information)

jagmaster 1.jpg
great White 840 4.jpg
jagmaster 5.jpg

BACKING DOWN 8KNOTS REVERSE ON MARLIN

This 870 Pro Sportsman in its element doing what it does best… chasing BIG fish.

10 KNOTS IN REVERSE

Backing down on gamefish is a walk in the park for our Pro Sportsman series.

Additional Information

Fitting of Engine to include:
Nav Lights, Bilge Pump, Master Switch, Fuel Filter, Fuel Lines, Installation of Gauges & Controls, Pre-delivery check & Sea Trials

Fitting of Stern Drives to include:
Engine Beds, engine well, hinged seal and commercially rated lockable engine box, insulated transom plate, battery shelf, sound proofing, engine air venting engine and leg secured down

Engine Power Options:
Inboard or Outboards

Coatings Options:
Customised graphics package, Nyalic clear coats, Solid and Metallic colours

Electronics options:
Furuno, Garmin, Simrad, Raymarine

Trailer option:
Custom White Pointer aluminium trailer
